Geospace Supports Vortex

Wind Analysis Software

Geospace NZ Ltd

29G Peters Way Silverdale

Auckland 0932

New Zealand

Ph. 021-2135518

​sales@geospace.co.nz

The complete Geospatial Services support Company

​Specifications:

RTF Weight:                     23.5kg
Pesticide Tank:                 22L

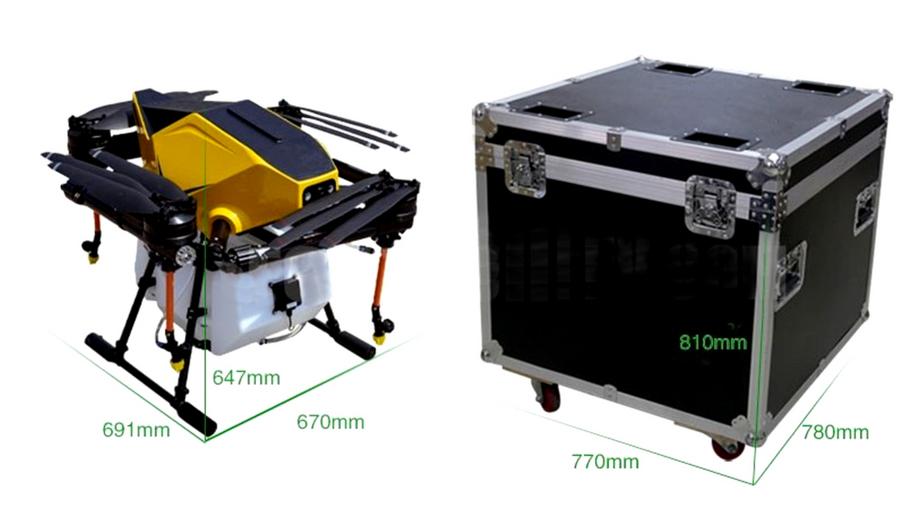

Size:                                1235mmx1235mmx647mm
Folded Size:                     691mmx670mmx647mm
Flight Speed:                   1-7m/s
Spraying width:                6-7m
Flight Time:                     15 minutes
Spraying Flow Rate:          2.3～7.4L/Min（adjustable）
Fogdrop Diameter:           120-200μm
Pesticide Dosage:             12-24L/ha(4.8-9.7L/acre)
Working Efficiency:          10-13.3ha/h(24.7-32acre/h)
Battery:                           51.8v, 14S, 20000mAh Lipo
Nozzle:                            4pcs
Precise Radar controlled flying height AGL
Rapid refill hopper

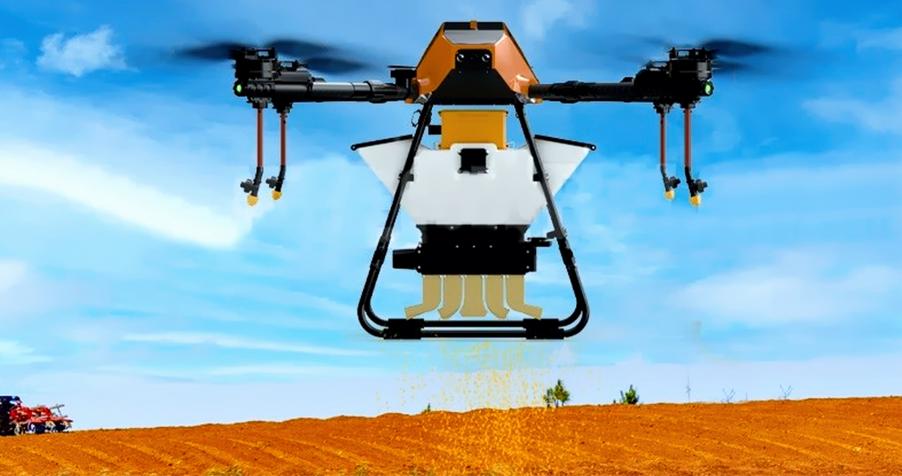

Dual function Seed Spreader or Fluid Sprayer
Portable flight case package
Rapid charger
Flight mission planner to set out the flight paths and overlaps within defined boundary
